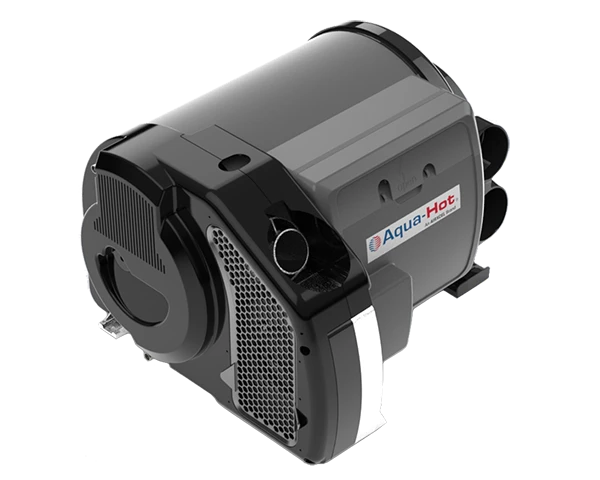

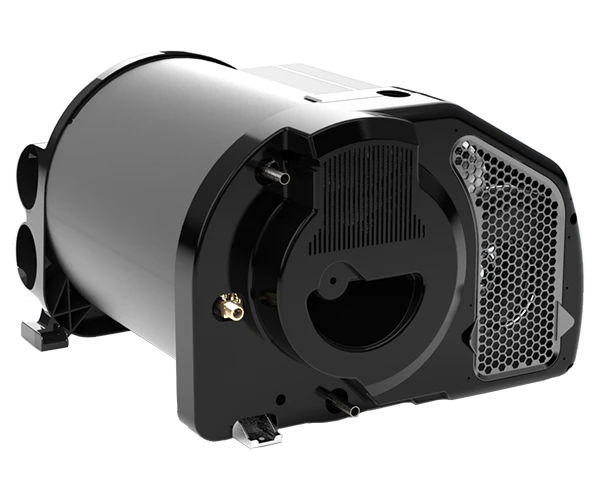

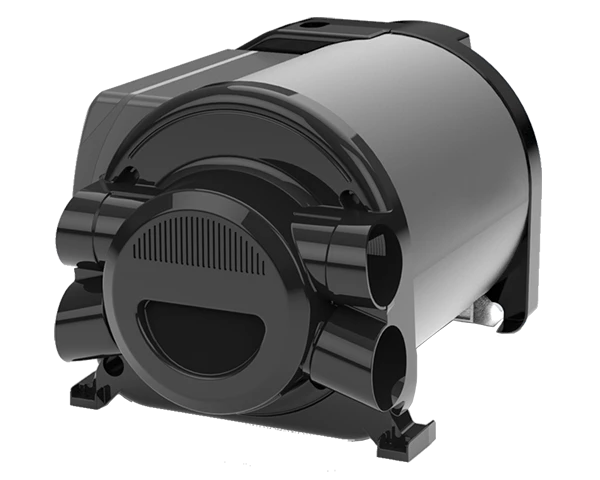

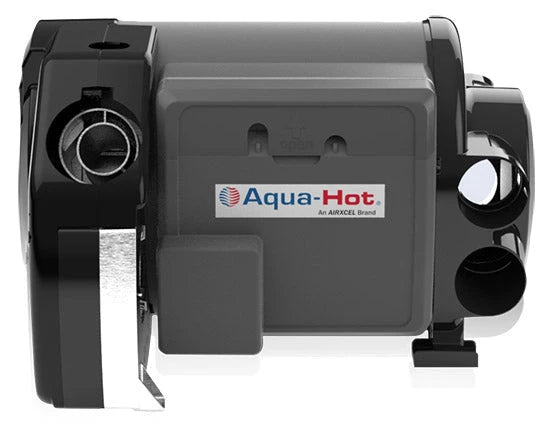

Aqua-Hot Gen1 D (Diesel) - AHE-GXN-DX1

Aqua-Hot Gen1 D (Diesel) - AHE-GXN-DX1

by Aqua-Hot
Save 10% Save 10%
$1,449.00
$1,449.00 - $1,449.00
$1,449.00
$1,304.10
$1,304.10 - $1,304.10
$1,304.10

Features

-  High Altitude Rated up to 15,000 ft
-  No Anode Design

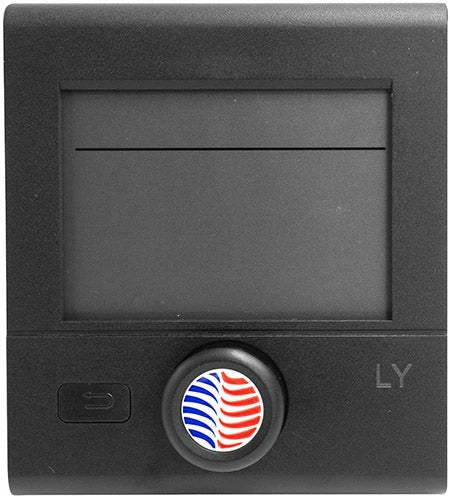

-  Easy-to-use Controls
-  Automated Timer
-  4 Heating Fan Speeds
-  10 Air Circulation Fan Speeds
-  Open Source/ RVC ready

    Specifications

    -  Hot Water Capacity                     2.64 G Stainless Steel
    -  Time to Heat the Water Tank      20 minutes
    -  Fuel Type                                     Diesel
    -  Heating Output                           13,500 BTU/hr
    -  Heat Output on Electric               6,000 BTU/hr
    -  Fuel Consumption (Maximum)    .16 gal/hr
    -  Power Supply                               12 V DC - 110 V AC
    -  Current Draw (Maximum)            15.6 A
    -  Dimensions                                  20.1" x 17.7" x 11.8"
    -  Weight (Without Water)              34.4 lbs
    -  Air Flow Rate                               168 CFM
    -  Altitude Operating Range           Up to 15,000 ft

    ---------------------------------------------------------------------------------------------------------------------------------

    Whats included

    –  Gen1 D Aqua-Hot System
    –  2 Year Warranty

    ---------------------------------------------------------------------------------------------------------------------------------Dont know the model of heater? Look for a white label with a model number. This label can be found on the top or on the side of your Heating System. Need more help? (Help Me Find My Model Number)

    PRODUCT SPEC SHEET, MANUALS & GUIDES

    A furnace and water heater combination with high altitude performance up to 15,000 ft.

    35 years of design expertise back the luxury RV comfort systems by Aqua-Hot now featuring the innovative Gen1.

    35 years of design expertise back the luxury RV comfort systems by Aqua-Hot now featuring the innovative Gen1.

    The Gen1 is a multi-purpose, single appliance designed to save space and weight in a vehicle while still providing the highest level of environmental comfort as well as 2.64 G of hot water. The Aqua-Hot Gen1 can heat water independently of the furnace, keeping RV owners comfortable year-round and ensuring they’re always ready for a luxurious hot shower from anywhere on the road. Warm air flows into the coach’s interior through 4 air outlets where it is distributed evenly and efficiently for a consistently comfortable internal temperature.

    The Aqua-Hot Gen1 is rated for high altitude operation up to 15,000 feet above sea level – compared to competitive models that are only rated up to 4,000 feet. Gen1 uses RV-C Open-Source intelligence for user-friendly control and easy integration into the RV’s multiplex system.
